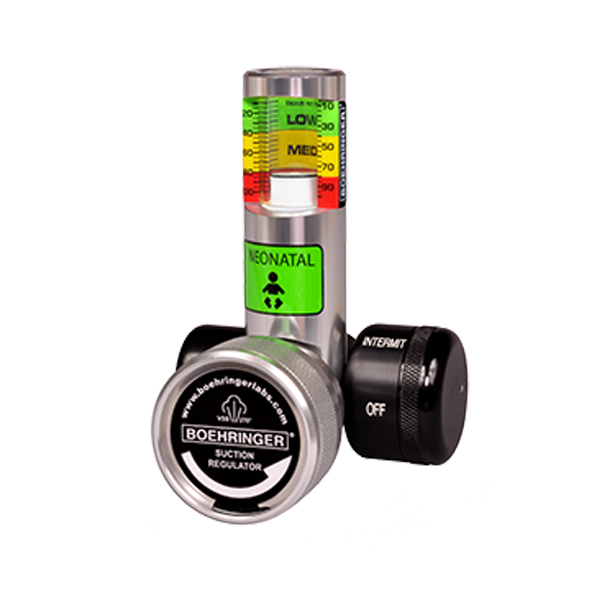

Model 3814

Platinum Series Suction Regulators – Neonatal Intermittent Suction Regulator

About Model 3814

The Neonatal Suction Regulator is specifically designed for neonatal and pediatric applications requiring continuous and intermittent suction. Most clinical guidelines recommend suction pressures below 100 mmHg for this patient population. The 3814 has been specifically designed to facilitate safe suction for neonatal and pediatric units.

The Platinum Series Suction Regulators are the next generation in suction control products. The Platinum Series features advanced enhancements designed to support superior performance in suction regulation.

The 3800 Series Suction Regulators are supported by a 12-Year Warranty. The 3814 model features technological advances that protect the interior regulating mechanism from flooding and contamination- the most common cause for regulator failure. This innovation gives the regulator extended life, which allows us to provide trouble-free operation for the length of its 12-Year Warranty.

Model 3814 Clinical Use

Appropriate for hospital-wide use for suction therapy procedures including closed suction, deep suction and oral care.

Areas of use include:

  • Critical Care
  • Emergency Room
  • Inpatient Acute Care of Pediatric and Neonatal patients requiring Continuous or Intermitting suction

Model 3814 Features

Modes: OFF--INTERMITTENT--CONTINUOUS

0-100 mmHg regulated suction

Patented, wide view XL Gauge with color-coded fields that can be read from a distance or from the side. Product Design® #4,911,749

No calibration required

12-Year Warranty

Self-Cleaning™ Technology protects against flooding and failure

Validated reprocessing methods utilizing 4-minute steam autoclave at 270° F

Fine resolution control knob

Resources

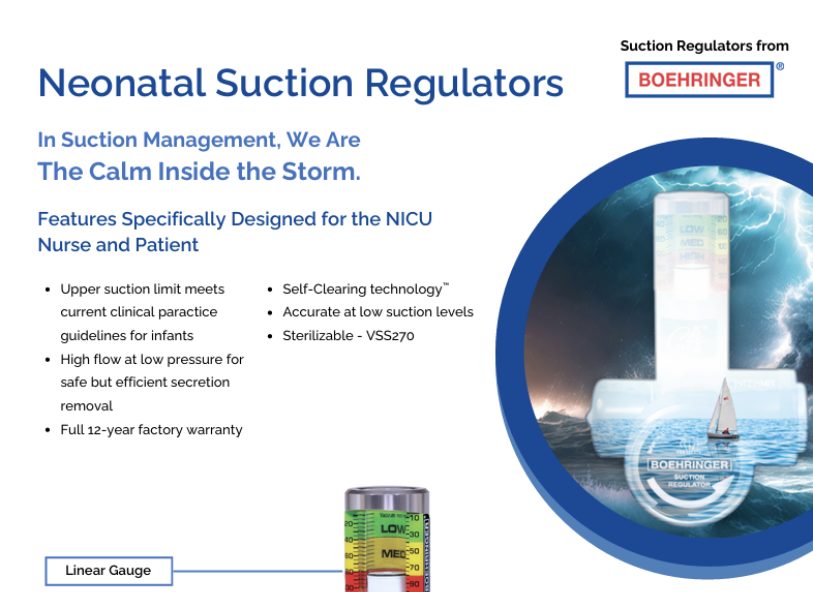

Sales Sheet

Boehringer’s Model 3814 are engineered for precise vacuum management and seamless integration, delivering reliable performance and enhanced control in critical medical applications.

Download Sales Sheet

Instructions

Learn about proper installation, operation, and maintenance of Boehringer products for optimal performance and reliability.

Download Instructions

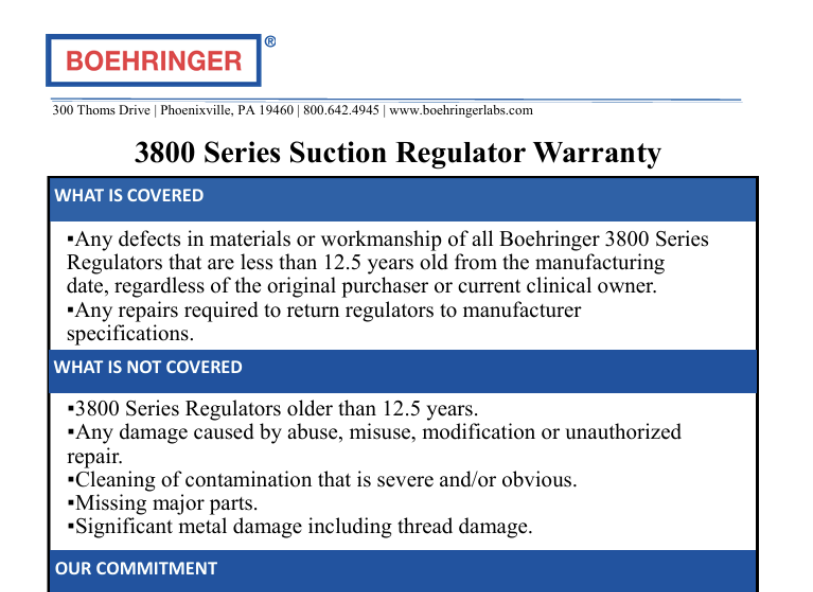

Warranty

Learn about Boehringer’s 12-Year Warranty.

Download Warranty
